MacPherson Production Studios

Overview

Located on the fifth floor of Mills Library our studios provide a professional media production space for all McMaster faculty and staff for developing educational content and resources. Our studios can provide you with the tools for a DIY approach to developing media content for your online courses, flipped classrooms and other digital learning content.

Our spaces contain:

Video Studio
  • Curtain backdrop system
    • includes black, grey, green
  • Paper backdrop system
    • white, blue, red
  • LED studio lights with modifiers for lighting
  • Sound insulated
  • Dimmable ceiling lights
One Button Studio
  • automated video recording system
  • record video file directly to a USB 3 drive
  • easy automated green screen capability
  • easily create picture-in-picture video
  • wireless control
  • TV for monitoring and direct feedback
  • Microsoft Surface Pro 8 for tablet use to record hand drawn notes
Audio Room
  • Sound insulated
  • Mac Studio with audio software already installed
  • Rodecaster Pro audio mixer
  • 2 Rodecaster Microphones
  • Sony a6400 for recording video
  • 2 Elgato Keylights
  • Elgato Streamdeck

Studio Booking



  • Only McMaster faculty and staff with a valid Mac ID are able to make reservations.
  • Bookings must be scheduled at minimum 3 business days in advance.
  • Bookings are made for the studio spaces, not equipment or filming services. Please bring your own recording equipment if you’re booking the video studio and not using the One Button Studio hardware.
  • If you do not contact us or come to your scheduled session after 15 minutes it will be considered cancelled.
  • Booking is currently for using the spaces only. If you require training or would like a training session/workshop please fill out our support request form.

To book a space, visit our booking system here: https://mibooking.mcmaster.ca/



One Button Studio

The One Button Studio (OBS) is a simple, easy to use video recording suite located on the fifth floor of Mills Library.

What is it?

The One Button Studio (OBS) is an easy-to-use video recording suite located on the fifth floor of Mills Library. The Studio is equipped with lights, a microphone and a camera recording system with wireless control utilizing an iPad as a controller. The automated recording system can be used by McMaster faculty and staff to record high quality videos without video production experience.

Features:

  • Record directly to USB
  • Automated green screen
  • Picture in picture feature
  • Wireless control
  • Video switching
  • Record additional HDMI source such as your laptop
  • Microsoft Surface Pro 8 for recording annotated videos

Who is it for and what can I use it for?

The studio spaces are for faculty and staff of the McMaster community to develop educational content or resources.

How do I get started?

The One Button Studio is a designated space within the MacPherson Institute, located on the 5th floor of Mills Library. To schedule a recording session, go to the Studio Booking tab.

You will need to bring a USB 3 drive (with at least 4GB of free space and formatted in exFAT) and a laptop with your presentation content (if you want to record slides) to your booking time.

Make sure to bring your own laptop with an HDMI cable adapter if you plan on having your slides recorded with the picture-in-picture function.

At the start of your session, you plug the USB drive into the designated spot, then attach the HDMI cable to your laptop (optional).

Once you have the video configured to your liking by using the iPad, hit record on the iPad and start. When you are finished hit the same record button again to stop recording.

The video is automatically saved onto your attached USB drive. Once you stop recording, you can then remove the USB drive.

View this detailed guide on using the One Button Studio.

Audio Studio

What is it?

The Audio Studio is a space dedicated to providing faculty and staff a flexible and easy way to recording audio. The room is insulated and has all the hardware and software required to record high quality audio. You can decide to record audio entirely through the use of hardware only, or through software or a combination of both. If you’re doing a podcast and would like to record video of it at the same time that’s also possible. The room provides 2 wirelessly controlled lights controlled from the Elgato Streamdeck. You can also quick launch specific software from its dedicated hardware buttons.

The room contains:

  • Mac Studio with audio software already installed
  • Rodecaster Pro audio mixer
  • 2 Rodecaster Microphones
  • Sony a6400 for recording video
  • 2 Elgato Keylights
  • Elgato Streamdeck
  • One set of headphones
  • USB Hub/Card Reader

Software:

  • Camtasia
  • Garageband
  • Audacity
  • Echo360 Universal Personal Capture
  • Kaltura Capture

Who is it for and what can I use it for?

This space is for faculty and staff looking to record any sort of audio such as podcasts. We also provide the hardware to do video recordings utilizing the lighting, camera and software setup in the room. One example is if you’d like to do high quality dual screen recordings ie (capture video of yourself as well as video of the screen of the computer).

How do I get started?

The audio studio is a designated space within the MacPherson Institute, located on the 5th floor of Mills Library. To schedule a recording session, go to the Studio Booking tab.



DIY Home Studio

Recording at home and looking for some tips? Here are the essentials we recommend for your own DIY home studio to record your lectures and presentations.

Essential Requirements

Webcam:

If you would like to have yourself appear in the video or during a live lecture, a webcam is essential. If you’re only going to record your lecture slides, you can skip this part.

If you’re using a laptop to record, most will have a webcam built in. You can use this webcam if you’re working on a tight budget. Some of the downsides of built-in webcams: they are usually lower quality (you’ll want a minimum of 720p recording quality), some lack manual controls for camera settings and there’s a limit to camera positioning because it is built into the screen.

We’d recommend purchasing an external webcam if your current built-in one is poor quality. See the link on the right for our recommended equipment list.

Microphone:

Audio is the most important part of recording lectures and presentations. People are less willing to deal with poor audio than they are with poor video. Laptops normally have a built-in microphone, but we do not suggest using it. These microphones are poor quality and will not be able to pick up your voice if you’re a further distance away. These microphones will also capture a lot of external noises and any movements you make on your desk (typing, papers rustling etc). It’s important to have a loud clear voiceover for student comprehension as well as helping accuracy for automated captions.

We recommended purchasing a high quality external microphone for best audio quality. See the link on the right for our recommended equipment list.

For more tips on recording audio, read this article: 10 Tips to Improve the Audio Quality in Your Video Recordings.

Additional Considerations

If you want a more advanced setup, here are some things you can consider.

Advanced Camera Options:

If you already have a DSLR or a dedicated camera that can record video, you can used his as your primary camera for recording. The main issue you may run into with certain cameras is that they do not record over USB. You will need a separate device called a capture card for most recording software to recognize the camera as a recording device. These capture cards connect the HDMI output of your camera to your computer through USB. If you’re looking for an affordable capture card, see the link on the right for our recommended equipment list.

Lighting:

Keep lighting in mind for where you choose to record. In a lot of cases your office or desk setup wasn’t intended for lighting so you might not be in ideal lighting situations for recording yourself. Consider turning on more lights in the room to make sure you’re well lit. If you don’t have sufficient lighting in your room or the positioning of your desk setup isn’t ideal, you can purchase small affordable LED lights to help. See the link on the right for our recommended equipment list.

Background:

It’s best to have a background that isn’t too distracting. You can try to be in front of a blank wall or use a virtual background. If you don’t want to use a virtual background, you can purchase small screens for green screening or just a blank background. We have a couple of options in our recommended equipment list.

The MacPherson Institute is pleased to share the addition of three new spaces to support the development of teaching and learning content. The three EdTech Stations are situated within the MacPherson Institute and complement the supports and services available through the existing MacPherson Studios. To reserve an EdTech Station, login to our booking system at https://mibooking.mcmaster.ca/.

The Ed Tech Stations can be used to:
• Develop/update learning modules including Articulate
• Create/edit videos
• Create/edit audio including podcasts, voice-over
• Explore AR/VR (PC Based station only)
• Create/update web-based content – H5P, Pressbooks, etc.
• Learn and explore new tools/ideas
• Conduct virtual meetings

The EdTech Stations are equipped with:
• Ergonomic Electronic Sit/Stand Desk, mouse and keyboard
• 2 MacStudio, 1 PC computers
• 32” monitors
• Studio Speakers
• Sure MV7 Microphone
• Sony ZV E10 with ring light

Each Station includes access to:
• Adobe Creative Cloud – Acrobat, Photoshop, Illustrator, Premiere Pro, After Effects
• Articulate 360 – Rise, Storyline
• TechSmith Camtasia
• PC station includes two (2) HP Reverb AR/VR headsets

In the coming months, the MacPherson Institute will offer programming and instruction using the EdTech Spaces, as well as the development of teaching and learning content. Programming will be offered in various ways including workshops, consultations and integrated into EDUCATN 770 Digital Literacies course.

Ed Tech desk station with: a ring light, computer, keyboard and speaker.

Studio Space FAQ and Troubleshooting

Here you can find answers to frequently asked questions and solutions to common issues regarding equipment in our spaces.

One Button Studio

Expandable List

I plugged in the USB drive and nothing happened.

Try using an appropriately formatted USB 3 drive. USB drives must be formatted as exFAT in order to be used with the One Button Studio. Other formats will not work. If your USB drive is already formatted to exFAT it may be too slow for direct recording. Note: SD cards with adapters and novelty USB drives do not work in many instances. You can confirm the USB drive is working when the drive information appears on the bottom right window of the TV.

How to format a USB flash drive on a Mac

Sometimes you may need to re-insert the USB drive. It might have not been inserted fully.

There is no video on the USB drive.

On the TV you should see available space and time on the USB drive if it’s working properly. You may have run out of space to record.

Also ensure the USB drive isn’t defective by testing it out on another computer.

There’s no audio signal.

Double check on the audio levels on the TV that there is an audio signal registered. If the levels are low your position may be out of reach of the microphone on the ceiling. Make sure to stay within the black square marked on the floor.

I’m playing the video but it has no audio.

Verify that the playback computer volume is audible. Also make sure that you’re using a video player like VLC Media Player.

The sound is not in sync with the video.

Avoid using Windows Media Player to play your video. Sound playback issues may be due to memory leakage in Windows. Reboot your computer or try playing the video with another application like VLC Media Player.

Play video directly from the desktop instead of the USB drive. Sound playback issues may result from USB drives being too slow. This will manifest as video stuttering or appearing out of sync. Copy the .mp4 from the USB drive to the desktop and then open the .mp4 on the desktop.

Nothing happens when the Record button is pressed.

The record button on the iPad should turn green once it’s recording. You’ll also see visual indication on the TV. If nothing happens try tapping again. You may have tapped too lightly or quickly on the touchscreen.

Sometimes if there is too much space already used on the USB drive, it may be slow and cause a delay to start recording. Try making sure there is a significant amount of free space on the USB drive before recording.

Controls are not working.

Try refreshing the webpage or turning on and off the wifi. Sometimes the iPad automatically shuts off the wifi after being in stand by for a long period.

Scenes aren’t changing.

Try tapping the scene buttons multiple times. This triggers different on-off states for each input.

The video is out of focus.

The autofocus on the camera may lose you if you move out of the frame. Try centering yourself in the frame and the camera should focus on your face again. If you are still out of focus please contact: Tony Hoang @ hoangtt@mcmaster.ca

The video stutters.

Play video directly from the desktop instead of the USB drive. Sound playback issues may result from USB drives being too slow. This will manifest as video stuttering or appearing out of sync. Copy the .mp4 from the USB drive to the desktop and then open the .mp4 on the desktop.

If this solution has not resolved your issue please contact: Tony Hoang @ hoangtt@mcmaster.ca

The lights didn’t turn on.

On the small white remote, push ON for buttons 1, 2 and 3.

Please contact: Tony Hoang @ hoangtt@mcmaster.ca

The lights didn’t turn off.

On the small white remote, push OFF for buttons 1, 2 and 3.

Please contact: Tony Hoang @ hoangtt@mcmaster.ca

The OBS software isn’t available – or it crashed.

Try refreshing the web page on the iPad. Also try turning on and off the wifi again to secure a connection.

How do I use my laptop for slides?

Connect the HDMI cable coming out of the side of the AV Cart. This is listed as CAM2 on the iPad control interface. Click the RED CAM2 icon to switch to this video source.

My video didn’t save to the USB drive. Can I retrieve it?

To ensure user privacy we don’t save copies of the videos that are recorded in the One Button Studio. If your video doesn’t save to your USB drive you will have to record the video again.

Where can I get a USB drive?

You can purchase USB drives from the Campus Store located in Gilmour Hall B101.

How do I upload a video to MacVideo?

The MacPherson Institute also supports a platform called Kaltura to upload and stream your media. You can visit www.macvideo.ca to upload, stream and manage media all in one place.

AUDIO STUDIO

Expandable List

What is the Rodecaster pro?

The RØDECaster Pro™ is a hardware controller designed to simplify podcast production whilst delivering superb audio quality. It supports up to four presenters, as well as offering easy connection to phone, USB and Bluetooth™ sources. Eight programmable pads offer instant playback of sound effects and jingles. Podcasts can be recorded directly to microSD™ card, or to a computer via USB. Ease of use is assured, with intuitive controls and large full-colour touchscreen.



What features does the Rodecaster Pro have?

  • 4 x XLR inputs for pro microphones (we currently have 2 microphones)
  • Separate inputs for:
    3.5mm TRRS (phone or device)
    Bluetooth (phone or device)
    USB (for music/audio or app calls)
  • Easily adjust levels – no extra gear or messy set-up involved
  • Programmable sound effects pads: 8 colour coded sound effects triggers for programmable jingles and sound effects
  • Multistage dynamics: compression, limiting and noise-gating
  • Full Colour, High-Resolution Touch-screen
  • Four high-power headphone outputs and stereo speaker out: each with independent volume controls
  • Records direct to microSD Card for completely self-contained operation, or to your preferred computer and software via USB
  • TRRS, USB, and Bluetooth Connectivity

You can see the full feature list here.

How do I turn on the Rodecaster Pro?

The Rodecaster Pro might be off when you enter the studio. To turn it on hold the red circular button on the back top right of the device. Here’s an image from the back.

rodecasterproback

How do I use the Rodecaster Pro to record a podcast?

The hardware is already setup so all you need to do is turn on the Rodecaster Pro and hit record. Here’s a link to the official Rode quick-start guide.



How do I ensure the recorded audio is at an appropriate volume?

You can monitor your microphone audio levels (also called metering) by keeping an eye on the visual touch screen. There are physical fader controllers to adjust the volume of each microphone.

How do I listen back to my audio recordings?

You can listen back to the audio you just recorded by tapping the Settings icon (gear icon), then tap Podcasts and you can then scroll through the files saved to the device. Each recording is saved with the date and time of the file.

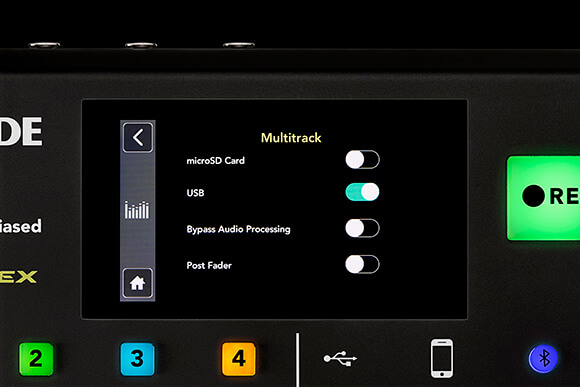

How do I transfer my audio files?

Once you’re done recording and you’d like to take your audio files, simply switch the Rodecaster Pro into USB mode.

1. Tap the green microSD card icon in the top right hand corner.

rodecaster1


2. Next to “Podcast Transfer Mode” tap the toggle to the right to enable USB mode.

usbmode4

It will show a confirmation screen whether you’d like to switch to Podcast Transfer Mode. Tap yes.

usbmode5

The screen will then show you’re in the Podcast Transfer Mode.

usbmode6

The Rodecaster icon will appear on the desktop like any regular USB Drive.

usbmode7



You can then drag and drop the files onto your own storage device utilizing the Card Reader that also has USB ports on the desk. The files will appear as WAV files and a generic file name. You can recognize your files by the date and time for each file recorded. Once finished you can exit UBS Transfer Mode by tapping Done on the Rodecaster Pro.

What software is provided?

Our iMac computer comes preloaded with:

  • GarageBand
  • Camtasia
  • Kaltura Capture
  • Echo360

How do I use GarageBand?

You can launch GarageBand directly from pushing the GarageBand key on the Streamdeck. Apple provides an excellent resource on how to use Garageband. View their instruction guide here.

How do I record, edit and share in Camtasia?

If you like to see more tutorials on video editing, audio editing and export your files in Camtasia, Camtasia has an excellence resources of tutorials here.


How do I enable microphone and camera recording in Camtasia?

If you want to record video with Camtasia, make sure the camera is turned on. You can see the power switch on the front grip. If you’d like you can also use the RODEcaster at the same time to record audio. Make sure the RODEcaster is on and the fader for the microphone you’re using is up and that it is receiving an audio signal.

When going to record, make sure the Sony a6400 is turned on and select Cam Link 4K as your camera source and RODEcaster as your microphone source as seen below if you’re planning to use the separate mics connected to the Rodecaster. You can also choose to use the camera microphone audio input if you don’t want to use the individual microphones. Simply choose Cam Link 4K as your audio source.

camtasia1

Sometimes if you stop and continue recordings, you’ll have to re-click the Cam Link 4K as your video source to trigger the camera again. If you don’t do this the Sony camera might not record for your next recording.

How do I use Echo360 Universal Personal Capture?

Echo360 provides excellent tutorials on how to use their software. You can view the tutorial on how to use Personal Capture here.

What microphones are in the audio studio?

We currently have 2 Rode Procaster microphones set up. The left microphone is Mic 1 and the right microphone is Mic 2.

Why am I not getting any input signal from the microphones?

Make sure that the RodeCaster Pro is turned on. Also check if the level fader for the desired microphone is up. You should see a visual display of audio input on the RodeCaster Pro screen. If you’re recording into software, make sure you select the RodeCaster Pro as your audio input device.

audioinput

Are there any recommendations or tips when recording my audio?

Being aware of your distance from the microphone and how you speak is important. View the video below to see some microphone techniques.

What is the Streamdeck?

The Elgato Streamdeck is a hardware controller that provides one-touch tactile operation for specific commands. Our setup allows you to wirelessly control the lights in the room as well as launch the main software installed on the iMac.

How do I turn on the lights?

Hit the LIGHTS ON/OFF button on the Streamdeck. If the computer has been asleep for awhile it may take a few minutes for everything to reconnect. The connection to the lights is through wi-fi so sometimes the computer will need to reconnect to all devices.

streamdeck1

How do I adjust the brightness of the lights?

Hit the ADJUST LIGHTING button on the stream deck. You will see two rows of keys that control each light. LIGHT 1 controls the light on the left and LIGHT 2 controls the light on the right. Use the BRIGHTER or DARKER buttons to adjust each individually. Each press will adjust the lights +/- 20%. To go back to the previous menu push the return button key on the top left hand corner.

streamdeck2
